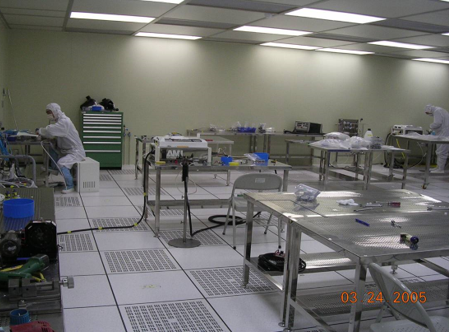

- 1.1 面積60坪，竹南
- 1.2 潔淨等級：class 1K
| PIPE | OUT D | 5S t | IN D | 10S | IN D | |
|---|---|---|---|---|---|---|
| 1/8" | - | 3.18 | 0.72 | 1.74 | - | - |
| 3/16" | - | 4.76 | 0.72 | 3.32 | - | - |
| 1/4" | - | 6.35 | 1.0 | 4.35 | - | - |
| 3/8" | - | 9.53 | 1.0 | 7.53 | - | - |
| 1/2" | - | 12.7 | 1.24 | 10.22 | - | - |
| 3/4" | - | 19.05 | 1.65 | 15.75 | - | - |
| 1' | - | 25.4 | 1.65 | 22.1 | - | - |
| 1/2B | 15A | 21.7 | 1.65 | 18.4 | 2.1 | 17.5 |
| 3/4B | 20A | 27.2 | 1.65 | 23.9 | 2.1 | 23 |
| 1B | 25A | 34.0 | 1.65 | 30.7 | 2.8 | 28.4 |
| 1-1/4B | 32A | 42.7 | 1.65 | 39.4 | 2.8 | 37.1 |
| 1-1/2B | 40A | 48.6 | 1.65 | 45.3 | 2.8 | 43 |
| 2B | 50A | 60.5 | 1.65 | 57.2 | 2.8 | 54.9 |
| 2-1/2B | 65A | 76.3 | 2.1 | 72.1 | 3.0 | 70.3 |
| 3B | 80A | 89.1 | 2.1 | 84.9 | 3.0 | 83.1 |
| 4B | 100A | 114.3 | 2.1 | 110.1 | 3.0 | 108.3 |
| 5B | 125A | 139.8 | 2.8 | 134.2 | 3.4 | 133.0 |
| 6B | 150A | 165.2 | 2.8 | 159.6 | 3.4 | 158.4 |

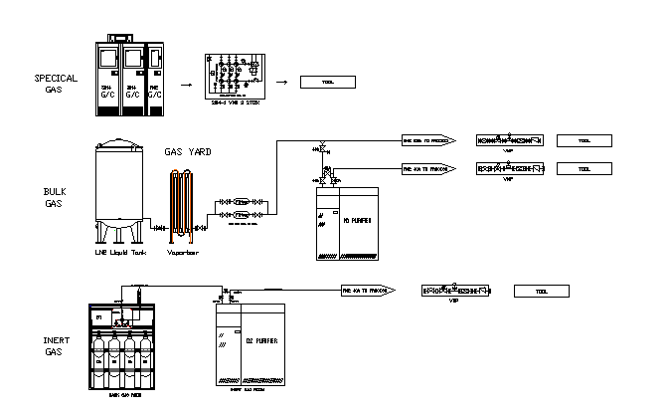

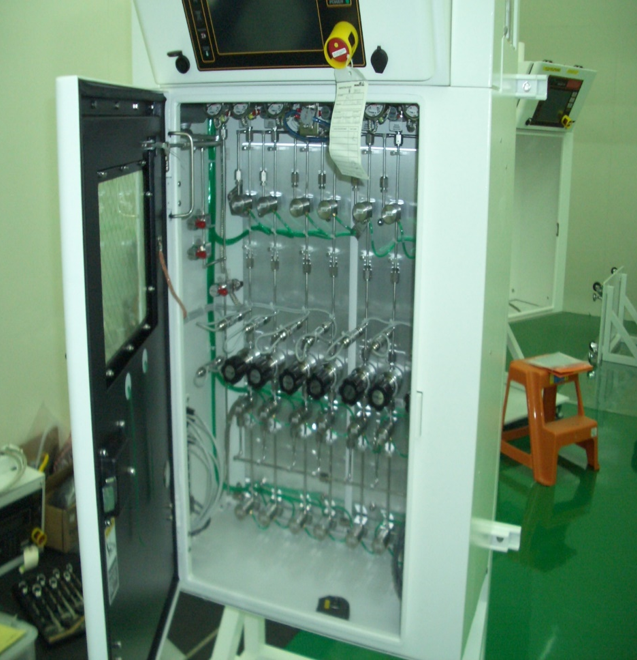

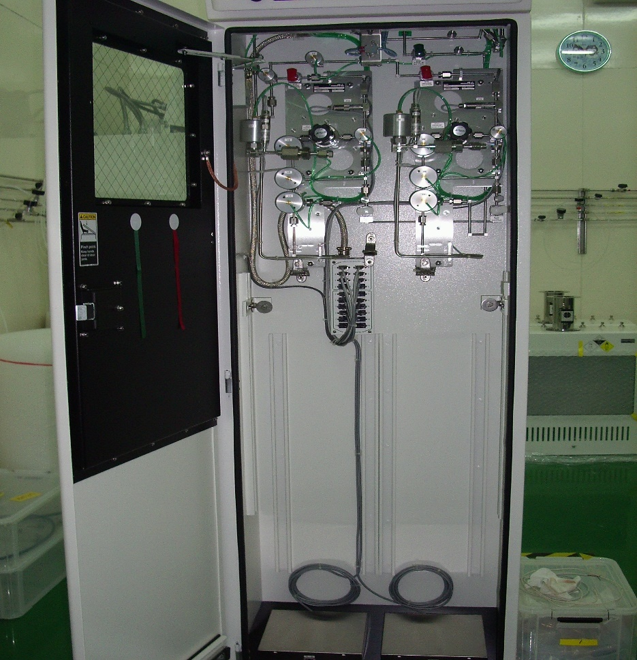

PPIC專精於系統與工程、維修保養服務，提供特殊氣體管路系統、大宗氣體管路系統、BSGS、氣瓶櫃(G/C)、氣瓶架(Rack)和VMB/P等專業服務。我們擁有完整的無塵室機電統包設計施工能力，為客戶提供高品質的系統工程與維修保養服務。
